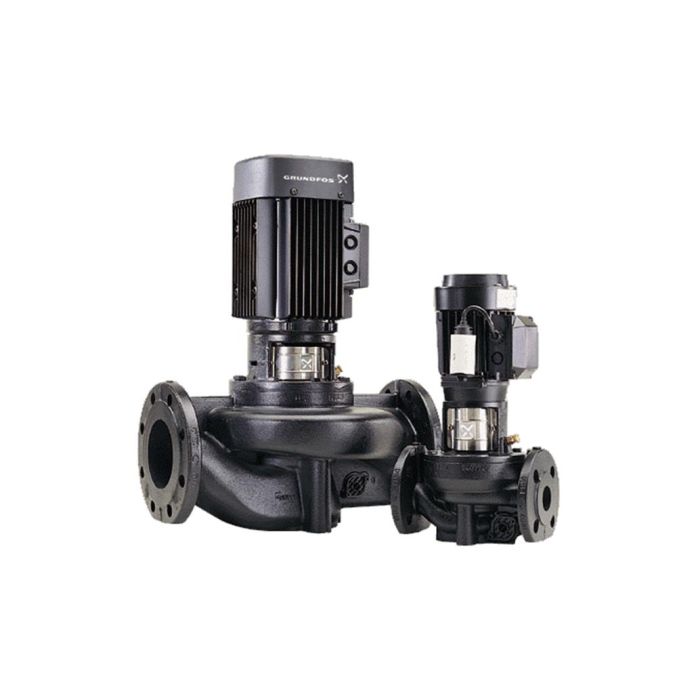

Grundfos TP50-120/2 Inline Pump 240V Cast Iron Body (98810439)
$3,150.00
Availability: In stock
SKU:
TP50-120/2
Grundfos TP and TPE vertical in-line pumps are used in a variety of applications. The pumps are all single-stage, in-line centrifugal pumps with standard motors and mechanical shaft seals. The pumps are of the close-coupled type, i.e. pump and motor are separate units. Consequently, the pumps are less sensitive to impurities in the pumped liquid than similar pumps of the canned rotor type.
Features and Benefits:
Optimised hydraulics for high efficiency Reduced power consumption High-efficiency motors TP pumps are fitted with high-efficiency motors High-efficiency motors provide reduced energy consumption 2-pole and 4-pole TP pumps from 0,75 kW to 375 kW have IE3 motors (By March 2012) Top-pull-out design Easy dismantling for service In-line design Unlike end-suction pumps, in-line pumps allow the use of straight pipework, which often results in reductions in installation cost and amount of space occupied Hydraulically and mechanically balanced impeller (Series 300 and 400) The impeller is hydraulically and mechanically balanced to increase the life of motor bearings and shaft seals Pump housing and pump head/motor stool are electro-coated Improved corrosion resistance
Applications
These vertical in-line pumps are used in commercial buildings for air conditioning and heating applications. The pumps are all single-stage, in-line centrifugal pumps with standard motors and mechanical shaft seals. The pumps are of the close-coupled type, i.e. pump and motor are separate units. Consequently, the pumps are less sensitive to impurities in the pumped liquid than similar pumps of the canned rotor type.
